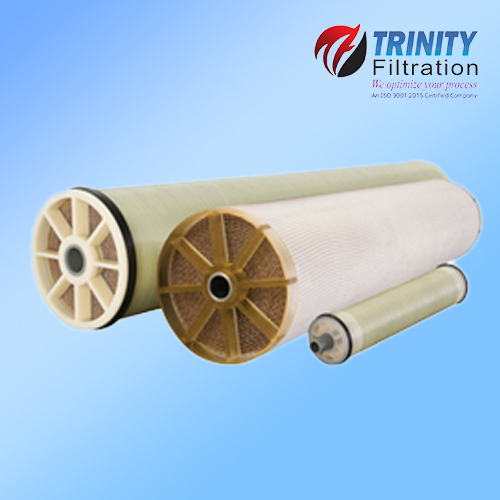

Ultrafiltration Spiral Elements

Ultrafiltration Spiral Elements
Ultrafiltration Spiral Elements
Product Code : USE-14
Brand Name : Trinity Filtration
Trade Information
  • Minimum Order Quantity
  • 10
  • Unit of Measure
  • Set/Sets
  • FOB Port
  • Thane West - Maharashtra
  • Payment Terms
  • Cheque, Others
  • Supply Ability
  • 500 Sets Per Month
  • Delivery Time
  • 30 Days
  • Sample Available
  • Yes
  • Sample Policy
  • Contact us for information regarding our sample policy
  • Packaging Details
  • Standard Packaging
  • Main Domestic Market
  • Maharashtra
Product Description

Owing to vast industry experience, we are able to manufacture, supply and export a complete range of Ultrafiltration Spiral Elements. These products are designed using latest machinery & equipment and top grade raw materials, under the strict supervision of our quality controlling experts. Further, our analysts team checks on different parameters to ensure that the offered product meets set industry standard. The Ultrafiltration Spiral Elements used across different industries are mainly used in waste water recycling process. We offer these in standard as well as customized sizes and specifications as per our clients' requirements.

Designed for extended life in a wide range of industrial and electro coat applications, EP Ultrafiltration Spiral Elements provide greater resistance to fouling by colloidal particles and oily contamination. The Polyvinylidene Fluoride (PVDF) membrane provides excellent chemical and temperature resistance under a variety of process conditions
Benefits

  • Available in sealed (low flow) or netted (high flow) design
  • Membrane has no electrical charge and can be used on either Anodic or Cathodic electroco at paints
  • Resistant to fouling due to contamination or color pigments
  • Element construction developed for extended life in industrial applications
  • Available in standard diameter or custom sized configurations for maximum performance and optimal cleaning
  • Increased resistance to oxidizing cleaning agents
  • Available in many configurations to retrofit competitive elements Applications
  • Anodic/Cathodic Paint
  • Select Water Borne Points
  • Waste Water Recycle
  • Alkaline Cleaner Recovery
  • PVA Recovery

Materials of Construction:

  • Membrane: Polyvinylidene Fluoride
  • Booking Material: Polyester
  • Permeate Tube: Polyvinyl Chloride (PVC)
  • Seal Carrier: ABS Plastic
  • Brine Seal: PDM

Operating Limits/Conditions:

  • Maximum inlet Pressure:60 psi (4.1 bar)
  • Typical inlet Pressure: 40-60 psi (2.7-4.1 bar) (application specific)
  • Maximum Operating Temperature: 122°F (50°C)
  • pH Range,continuous:2-10
  • pH Range, short-term cleaning: 2-11.5 @122°F (50°C
