Capsule Filters

Name: Capsule Filters
Brand: TRINITY FILTRATION TECHNOLOGIES PVT. LTD.
Price: 7200.0 INR
Availability: InStock

Price 7200.0 INR/ Unit

Get a Price/Quote

MOQ : 10 Units, Unit

Capsule Filters Specification

Usage
Sterile Applications

Type
Other

Diameter
2.5 Inch (in)

Product Type
Capsule Filter

Color
White

Capsule Filters Trade Information

Minimum Order Quantity
10 Units, Unit

FOB Port
Thane West - Maharashtra

Supply Ability
500 Units, Unit Per Month

Delivery Time
30 Days

Sample Available
Yes

Sample Policy
Contact us for information regarding our sample policy

Packaging Details
Standard Packaging

Main Export Market(s)
Middle East, Australia, Central America, South America, North America, Africa, Western Europe, Asia, Eastern Europe

Main Domestic Market
All India

About Capsule Filters

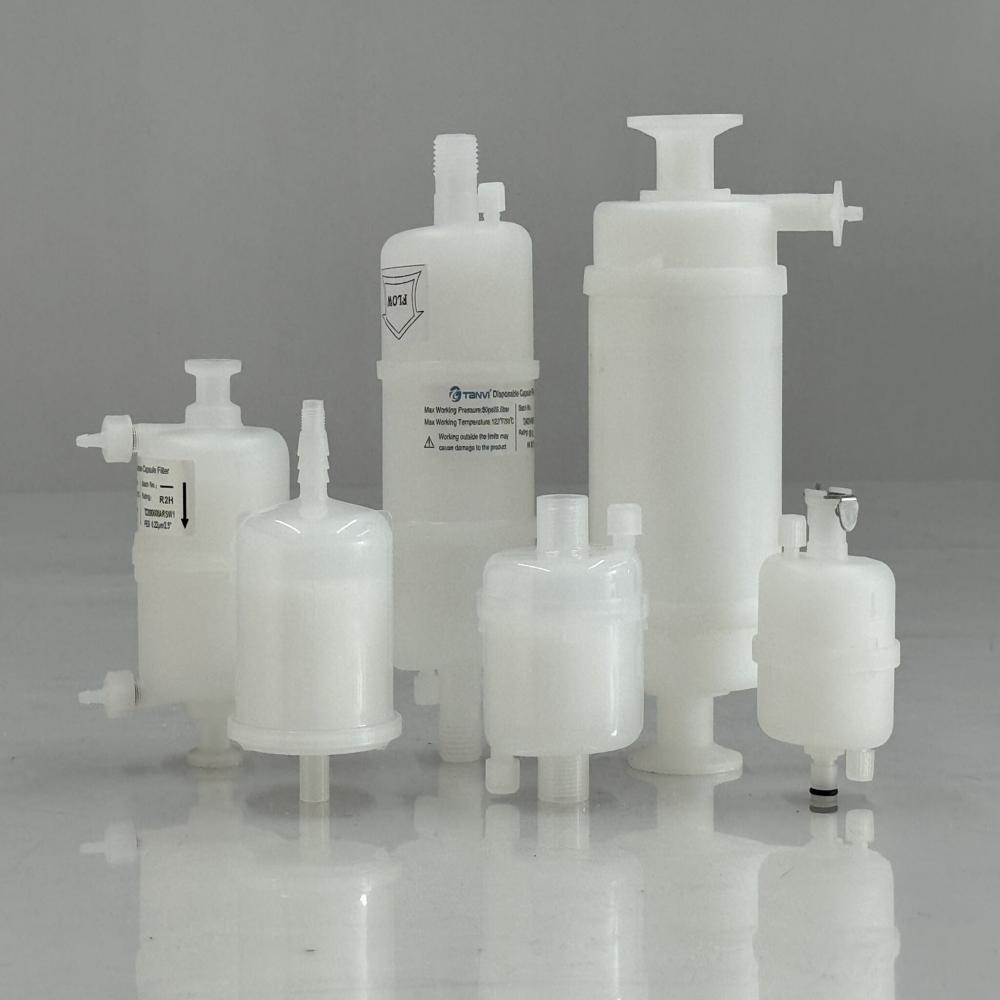

TRINITY SteriPRO CP series Capsule Filter is a compact filterassembly that is designed for filtration of small volume batches Its applications are Small Volume ParenteralSVP Pharmaceutical Biological Fluids Ophthalmic solutions filtration ofdeveloper Fine Chemicals Coatings and DI water

SteriPRO Capsules provide excellent retention of particulatematter and bioburden reduction sterile filtration at relatively higher flowrates and offers consistent reproducible filter performance SteriPROCapsules are constructed from all Polypropylene body and hence provide superiorchemical resistance durability in process filtration applications

Features Benefits

Body made from 100 virginpolypropylene
High contamination retention atrelatively higher flow rates
Ideal for under 10 LPM flow rates
Low holdup volume
Vent at Highest Point Drain atLowest point
Disposable Compact design easy tochange out
End caps and connectors are sealed bythermal bonding
High surface area design to increasefiltration throughput
Manufactured in clean roomenvironment

Filter MOC Material:

Support Material
Polypropylene
Filter Media
Polypropylene
Polyethersulfone
PTFE
PVDF
Nylon
Shell Cage and End caps
Polypropylene
HDPE

Dimensions

Length: 4 6 8
Diameter: 25 64 mm

Operating Conditions

Max differential Pressure: 60 PSI 41 bar 25OC
Max Operating Temperature: 80OC

Precision Filtration for Sterile Environments: These capsule filters offer dependable filtration down to 1 micrometer, making them perfect for sterile environments where particle-free solutions are critical. Their stainless steel construction ensures longevity and compatibility with stringent sanitary needs.

Engineered for Efficiency and Durability: With a 5-centimeter thickness and sturdy design, our round, white capsule filters maximize operational lifespan and filter integrity. They are ideal for demanding processes where reliability cannot be compromised.

FAQs of Capsule Filters:

Q: How are these capsule filters used in sterile applications?

A: These capsule filters are typically installed in fluid lines or filtration systems to remove contaminants and particulates as small as 1 micrometer, ensuring sterile output for pharmaceutical, laboratory, or medical processes.

Q: What is the filtration process employed by these capsule filters?

A: The process involves passing fluids through the stainless steel capsule, where the 1 micrometer-rated filter traps unwanted particles, delivering clean, sterile solutions suitable for sensitive applications.

Q: When should I choose a 1 micrometer tolerance filter for my application?

A: A 1 micrometer tolerance is recommended when you require removal of fine particles and microorganisms, which is essential in sterile processing environments such as medicine production, laboratory sample preparation, and sensitive research.

Q: Where can these capsule filters be integrated?

A: These filters can be integrated into various sterile systems including medical equipment, pharmaceutical manufacturing plants, and laboratory filtration setups that require high purity and reliable performance.

Q: What benefits do stainless steel capsule filters offer compared to other materials?

A: Stainless steel provides exceptional durability, corrosion resistance, and ease of sterilization, making these filters ideal for repeated use in rigorous, sterile settings without compromising quality.

Q: How does the round design and 2.5-inch diameter affect filter performance?

A: The round shape and 2.5-inch diameter promote consistent fluid flow and optimal filtration surface area, resulting in efficient contaminant removal while minimizing pressure drops.
