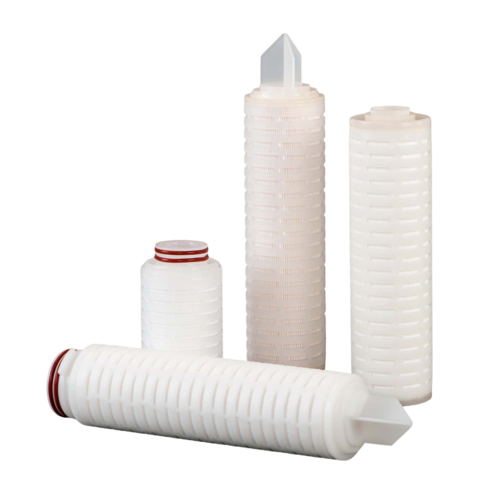

Steri Pro Pe Series Pes Membrane Filters

Send Inquiry

Request To Call Back

Steri Pro Pe Series Pes Membrane Filters

Name: Steri Pro Pe Series Pes Membrane Filters
Brand: TRINITY FILTRATION TECHNOLOGIES PVT. LTD.
Price: 7200 INR
Availability: InStock

Price 7200 INR/ Unit

Get a Price/Quote

MOQ : 10 Units

Steri Pro Pe Series Pes Membrane Filters Specification

Sealing
Thermal Bonded

Filter Rating
0.1 1.2 Micron

Pore Size
0.22 m

Shape
Cylindrical

Filter Media
PES

Product Type
PES Membrane Filter

Material
Other

Type
Cartridge Filter

Cartridge Style
Encapsulated

Efficiency
99.99%

Application
Liquid Filtration, Pharmaceutical, Biotechnology, Food & Beverage, Chemical, Electronics

Flow Rate
Up to 35 L/min

Support Structure
Polypropylene

Core
Polypropylene

Sterilization Method
Autoclavable, Gamma Irradiation

Applications
High purity water, buffer solutions, biologicals filtration

Color
White

Max Operating Temperature
80C

End Cap Type
222/Flat

Integrity Test
Bubble Point, Diffusion Test

Length
254 mm (10\\

Recommended Change-out Pressure Drop
2.5 bar

Steri Pro Pe Series Pes Membrane Filters Trade Information

Minimum Order Quantity
10 Units

FOB Port
Thane West - Maharashtra

Supply Ability
500 Units Per Month

Delivery Time
30 Days

Sample Available
Yes

Sample Policy
Contact us for information regarding our sample policy

Packaging Details
Standard Packaging

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

Steri Pro Pe Series Pes Membrane Filters About

Steri-PRO PE series Polyether sulfone Sterilizing grade filters are manufactured to conform with the stringent quality standards required by filterst hat come in contact with biological, pharmaceuticals, and other critical processes. The filter cartridges conform to Toxicity tests, meet the requirement of the USP 29 Biological test for Plastics, and are manufactured using components that comply with CFR 21 regulations. The Filters are supported by avalidation guide prepared specifically for manufacturers requiring product documentation as part of their qualification process.

Filter Specifications Of Sterilizing Grade Filters Cartridges:

Media: 0.2 mm Double-layer Asymmetric Polyether sulfone membrane ( 0.45 pm, 0.6 pm, 0.8 mm and 1.0 pm available)
Support media: Polypropylene
Cage/Core/End Caps: Polypropylene
O Rings/Gaskets: Buna N, EPDM, Silicone, Viton
Internal Support Ring: Stainless Steel

Dimensions:

Nominal lengths : 9.75,10,20,30,4oinches
Outside Diameter : 2.7inches (69mm)
Inside Diameter : 1 inch (25.4mm)

Operating Conditions:

Max Diff. Pressure: 4 Bar at 20C/2 Bar at 60C
Sterilization: Autoclave 30 minutes of 126C. Steam 30 Mins of 135C

Applications:

Pharmaceuticals
Biologicals
Solvents
Ophthalmic Solutions
LVP/SVP/Sterile API
Vaccines
High Purity Chemicals
High Purity Water

Filter Specification:

Media	0.2 um Double layer Asymmetric PES membrane
Micron Rating	0.45, 0.6, 0.8 and 1.0 micron
Support Media	Polypropylene
Cage/Core/End Caps	Polypropylene
'O'Rings / Gaskets	Buna N, EPDM, Silicone, Viton
Internal Support Ring	Stainless Steel

Dimensions

Nominal Lengths	9.75, 10, 20, 30, 40 inches
Outside Diameter	2.7 inches (69mm)
Inside Diameter	1 inch (25.4mm)

Operating Conditions

Max.Diff.Pressure	4 Bar at 20C/2 Bar at 60C
Sterilization	Autoclave 30 minutes at 126C. Steam 30 Mins at 121C

Superior Filtration Performance: With a 0.22 m filter rating and 99.99% efficiency, the Steri Pro PE Series stage exceptional results in critical filtration processes. The polyethersulfone (PES) membrane delivers consistent and high flow rates, accommodating up to 35 L/min, ideal for demanding applications across pharmaceuticals, biotechnology, and more.

Robust and Resilient Construction: Built with a polypropylene core and support structure, the cartridge ensures chemical compatibility and mechanical stability. Its encapsulated design, combined with thermal bonded sealing, allows operation at 5 bar pressure and up to 80C, making it suitable for rigorous liquid filtration environments.

Flexible Sterilization Methods: Sterilization can be performed using autoclave cycles or gamma irradiation, catering to diverse user protocols in laboratories or industrial settings. This capability ensures consistent aseptic performance and regulatory compliance.

FAQs of Steri Pro Pe Series Pes Membrane Filters:

Q: How are Steri Pro PE Series PES Membrane Filters typically used in industrial applications?

A: These filters are used for high purity liquid filtration in industries such as pharmaceuticals, biotechnology, food & beverage, chemical processing, and electronics. They efficiently remove particulates and microorganisms from water, buffer solutions, and biological fluids.

Q: What is the process for installing and operating these cartridge filters?

A: Installation involves placing the encapsulated cartridge with a 222/Flat end cap into a compatible housing. Ensure seals are intact and connect to the liquid system. Operate within 5 bar pressure limits and a maximum temperature of 80C for optimal performance.

Q: When should the Steri Pro PES Membrane Filter be replaced?

A: It is recommended to change out the filter when the pressure drop reaches 2.5 bar, as this indicates significant clogging and loss of flow efficiency. Periodic integrity tests, such as bubble point and diffusion tests, also help determine replacement timing.

Q: Where are these filters manufactured and supplied?

A: Steri Pro PE Series PES Membrane Filters are manufactured, exported, and supplied from India, serving customers globally across various industries.

Q: What sterilization methods are compatible with these filters?

A: These filters can be sterilized using autoclave cycles or gamma irradiation, allowing flexibility depending on facility protocols and requirements for aseptic conditions.

Q: How does the filter medium contribute to system safety and product quality?

A: The polyethersulfone membrane offers high chemical compatibility and thermal stability, ensuring reliable removal of contaminants without releasing fibers or extractables, thereby safeguarding sensitive processes and ensuring product purity.
